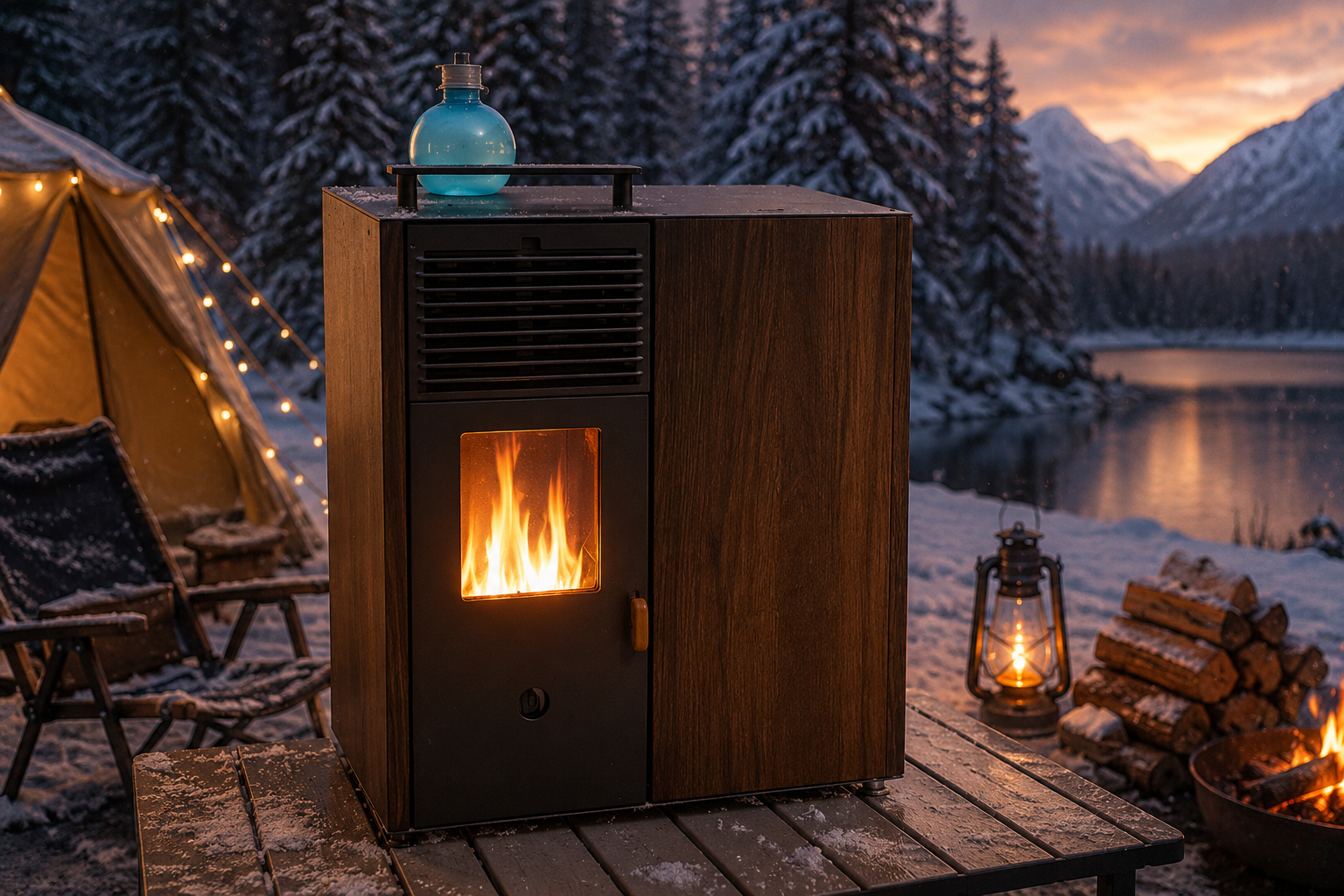

Magenic Portable Forced-Air Pellet Heater: Self-Powering Camping Stove


Transform your camper van into a warm and quiet retreat.

For disaster preparedness: The only standalone system to survive extreme winters without electricity.

The value of this product does not stop at the campsite. A massive blackout situation where a city’s power grid is paralyzed by midwinter heavy snow. No external power grid or battery is needed. With only pellets and fire, it is the next smartphone communication & protect your family’s body temperature. it is the most perfect life insurance.

Why are we still risking our lives for winter warmth? Powerless. Smoked-free. 100% Autonomous Heating System Powered by Fire Alone.

Why Has the World Failed to Commercialize Small Pellet Heaters?

"The Barrier of Miniaturization"

Household electric pellet heaters are everywhere. This is because electricity is supplied infinitely. However, the moment they attempt to make them 'small and light' for camping, all engineering efforts worldwide end in failure.

The Disaster of a Constricted Exhaust Structure: As the size decreases, the internal space becomes extremely cramped, causing soot and ash to accumulate in the complex exhaust pipes within hours, leading to blockages.

Failure of Fine Control: The inability to control pellet input and oxygen injection volumes with low noise and low power consumption results in uncontrolled flames and backfires.

Limitations of Power Efficiency: The moment a motor is added to move the bottom combustion plate to prevent ash accumulation, the structure becomes a power-consuming overload that self-generation cannot handle, forcing the abandonment of commercialization.

This is akin to a car engine that stops if even a single element goes awry.

Liquid/Gas Fuel Heaters: The shadow of 100% Efficinency

Convenience is maximized using easy ignition and electricity, but this 100% thermal efficiency is possible because there is on exhaust vent (chimney). This means that while all the heat remains inside the tent, 100% of the combustion byproducts also stay inside the tent.

With manual pellet stoves, reducing the heat output causes 'clinker' to form due to incomplete combustion, making it physically impossible to safely extend the burning time.

Unless you burn at maximum heat, smoke backflow cannot be avoided.

Solid Fuel stover: Naw Efficiency, High Labor

"The fear of smoke backflow at dawn—do not build massive 20 ft chimney buildings anymore."

The internal exhaust system perfectly controls the pressure in the combustion chamber to forcibly expel harmful gases and smoke to the outside. Now, with just one or two basic chimneys, you can enjoy the safest and most comfortable off-grid heating with zero risk of backfire.

The most horrifying moment of winter camping is a burn accident that occurs when the flesh hits the main body of the stove due to an instantaneous mistake. You can't help but be nervous, especially when camping with children and pets.

Thanks to its strong dual airflow control and cold air forced intake structure, this warmer fundamentally blocks the risk of thermal burns on the exterior surfaces and exhaust parts. It is the only off-grid heating system that allows you to sleep soundly throughout the night.

Compact Design That Perfectly Adapts to Any Tent Environment

Forced Exhaust System:
The motor forcefully pushes out exhaust gas, eliminating the need for a tall vertical chimney. It operates perfectly with side discharge alone, making winter tent setup in strong winds overwhelmingly simple.

Only once a day, lightly push and pull the external lever back and forth once or twice.

Perfectly shake off the soot and ash accumulated inside the heat exchanger without getting a drop of ash on your hand.

This self-powered warmer has changed the paradigm of combustion.

Conventional hand pellet stoves have chronic design flaws. As combustion efficiency decreases, the pellets fall into the container without being completely burnt.
There was also a lot of ash.

- Fine particle-level complete combustion: Thanks to a precision combustion system that forcibly injects oxygen, pellets are simply burned 'without trace'. Even after eight hours of continuous operation, the ash that builds up is only one-third the level of ash, and even that burns perfectly in the form of fine flour rather than underburned chunks. We achieved the ultimate clean heating with no smoke, soot, or excess ash.

The era of relying on natural ventilation is over. Now, powerful jet exhaust!



4-sided air curtain window

Soot-free transparency and backflow-free safety—this is the standard for next-generation camping stoves presented by Magenic Korea.

Overwhelming torque of 7.8 N·m, which cuts any pellet strongly.

This self-generated hot air fan is a screw conveyor pellet feeder developed for DC, equipped with a super strong high-torque motor not found in small equipment called 7.8 N·m (69 lb-in), completely breaking this limitation.

-With strong shear force, the pellet is directly broken, crushed, and pushed uninterrupted into the combustion chamber.

"We have undergone countless trials and errors and prototype modifications. We have pushed durability to the extreme using precision machining and welding techniques that do not allow for even the slightest gap."

0% external power. It generates electricity independently using only thermal energy to power a large blower fan.

The extra-large heat sink is designed for powerful cooling.

This is not a laboratory trick. It has already demonstrated an overwhelming pure power generation voltage of 25V in warm ambient temperature tests at 70°F (21°C).

Thermoelectric devices demonstrate their true value when encountering real winter conditions where the outside temperature drops below freezing. When the outside temperature drops below 32°F (0°C), the power generation voltage rises explosively to over 30V thanks to the maximized temperature difference.

Thermodynamic Airflow Test Conducted Inside the Tent

A powerful blower system powered by self-generating power pushes warm air deep down to below 45 degrees.

It creates convection from the floor without heat loss, filling the entire tent with a constant temperature.

It can be easily cleaned using a hand-held blower.

Exceeding the standard 8 hours and up to 11 hours. Expansion Kit

This self-generating fan heater is capable of 7 to 8 hours of continuous operation using only the standard built-in hopper 13.23lbs(6KG), thanks to the overwhelmingly high-efficiency combustion algorithm characteristic of compact fan heaters. This is already sufficient capacity to cover a typical overnight stay.

By simply attaching the expansion kit modularly, heating continues for up to 10 to 11 hours without a single operation.

There is no such thing as 100% perfection in man-made machines. That is why we focused even more on "safety when stopped."

The moment the system stops due to an unexpected physical impact or malfunction during operation, the heater begins to protect itself.

External air intake is immediately cut off to stop the oxygen supply to the combustion chamber; the screw stops to burn only a minimal amount of residual pellets, after which the entire system quietly and safely shuts down completely, controlled by a built-in precision heat sensor.

Suffocation, fire, and backfire are impossible words in the face of this product.

Detailed Specifications

Specification (W x D x H)
423 x 234 x 485 mm

Body weight
17.5kg (38.58lbs)

heating capacity
19.83 square meters

Fuel tank capacity.
Basic 13.23 lbs  6kg

17.64 lbs  8kg for expansion

Fuel consumption
1.21lbs~1.65lbs
0.55 to 0.75 kg per hour

Battery / Power
Includes 12V 10,000mAh / 12V adapter

Other Components
60 ø including 2 exhaust pipes
1 aluminum duct)
1 set of expansion kits

Key Materials: Steel SS400, Aluminum 6061, SUS304 Stainless Steel, Ceramic Sera Glass.

Power generation module: High efficiency thermoelectric element (TEG)

USB Type-C: Integrated 5V port (charging temperature 32°F = 0°C)

Safety devices: automatic oxygen cutoff system, precision thermal sensor module 4ea

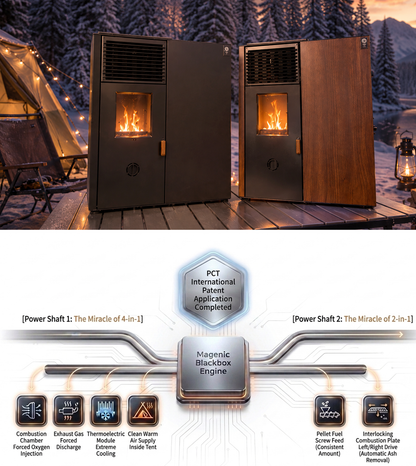

The World’s First Self-Powering Forced-Air Pellet Heater
Meet the ultimate camping innovation by **Magenic LLC**. Engineered for extreme outdoor enthusiasts, this portable pellet heater completely redefines winter camping. With our world-first self-generating technology (PCT International Patent Filed), you no longer need external batteries or electricity to run a powerful forced-air heating system.

Key Features & Innovations
*   **Self-Powering Technology (No Electricity Needed):** Utilizing advanced thermoelectric engineering, the heater converts its own waste heat into electrical energy. It powers its own built-in forced-air blower automatically, eliminating the need for power banks or campsite electrical hookups.
*   **High-Efficiency Forced-Air System:** Unlike traditional wood stoves that only heat a small radius, our integrated forced-air system continuously circulates powerful, clean hot air to warm your entire tent or shelter evenly.
*   **Eco-Friendly Pellet Fuel:** Designed for high-density wood pellets, providing a highly efficient, clean, and smoke-free burn with minimal ash residue.
*   **Engineered for Portability:** Compact, lightweight, and built with premium CNC-machined and laser-welded components to withstand rugged outdoor conditions.

Technical Specifications
*   **Brand: Magenic LLC
*   **Fuel Type:** Wood Pellets
*   **Power Source:** 100% Self-Generating (Eco-Thermal Energy)
*   **Core Technology:** PCT International Patented Self-Powering Forced-Air Mechanism
